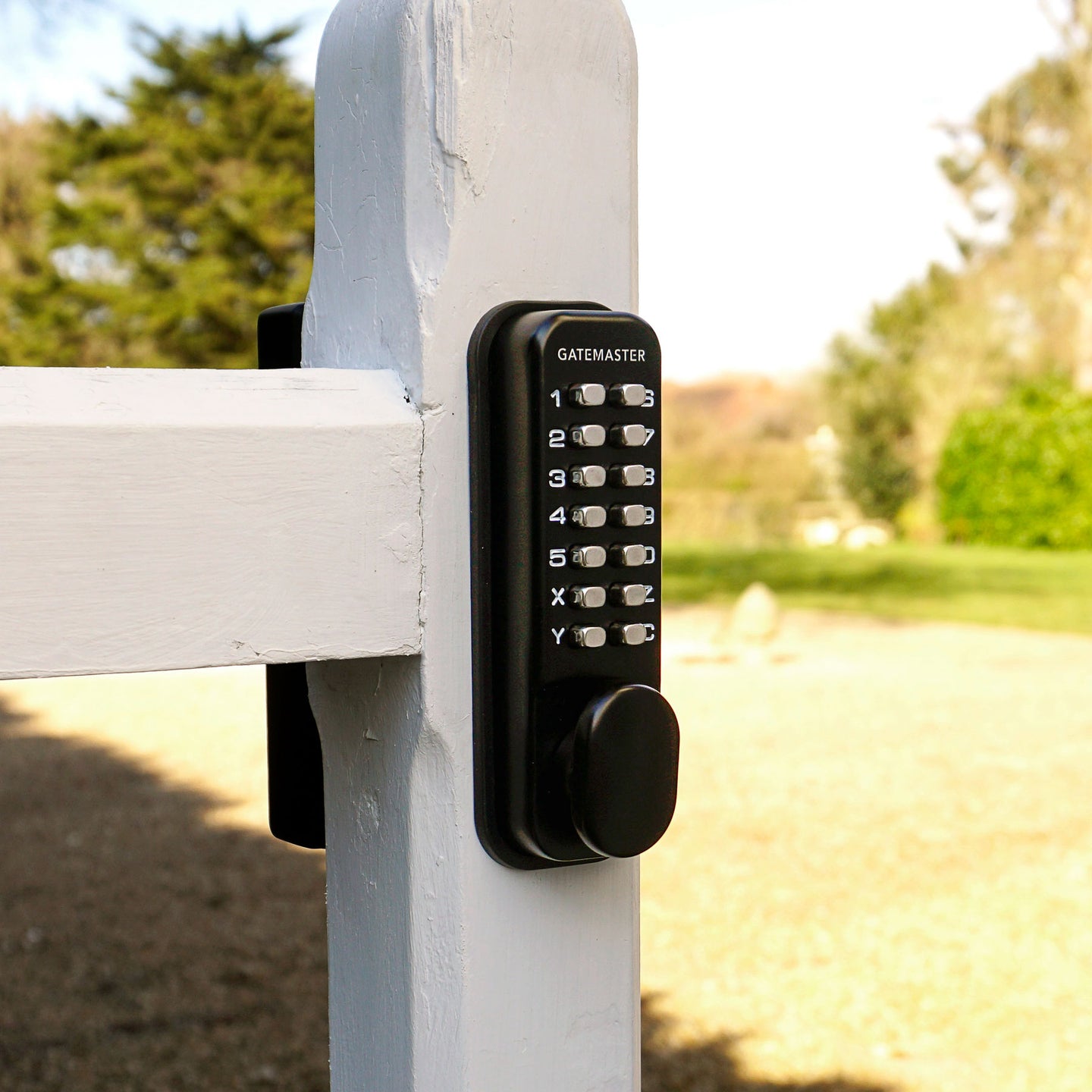

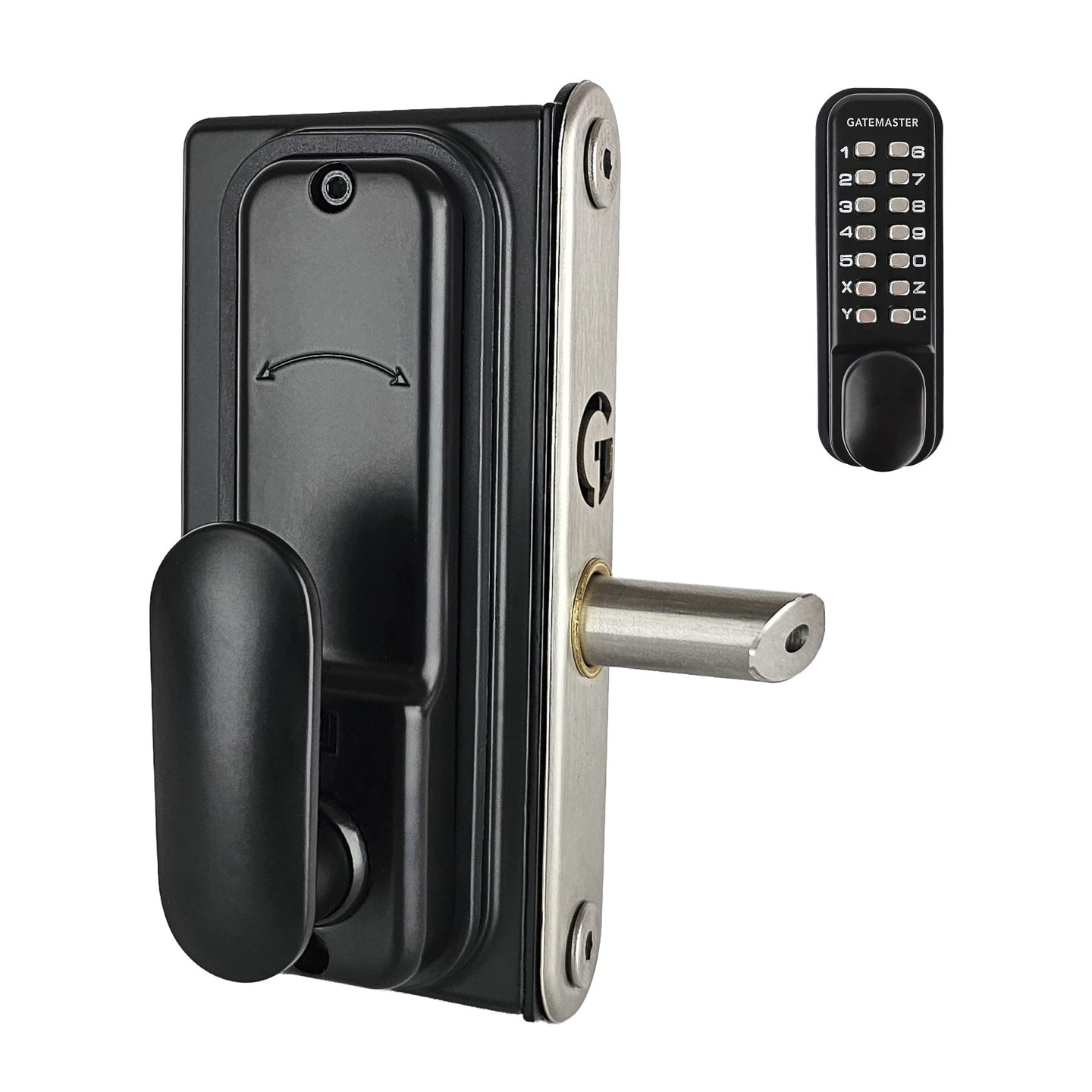

• A surface fixed digital gate lock with keypad on one side and a rear lever handle on the other side. A simple and secure solution for access control on your wooden gate.

  With a keypad on one side and a rear handle, this lock is suitable for all your wooden gate projects. This lock is auto-latching and access can only be gained by entering the code. Featuring a hold-back function to allow you to keep the gate unlocked when it is activated.

  • Corrosion resistant – the lock features marine grade keypads and powder-coated stainless steel casing
  • No power needed – the mechanical keypad requires no power and can be installed anywhere
  • Adjustable latchbolt – adjust the latchbolt in length for a precise fitting to your wooden gate
  • Auto-latching – close the gate and the latchbolt latches into the gate frame. To open the gate – enter the code and turn the handle
  • Keypad on one side and rear lever handle – also available with keypads on both sides

  Product Code

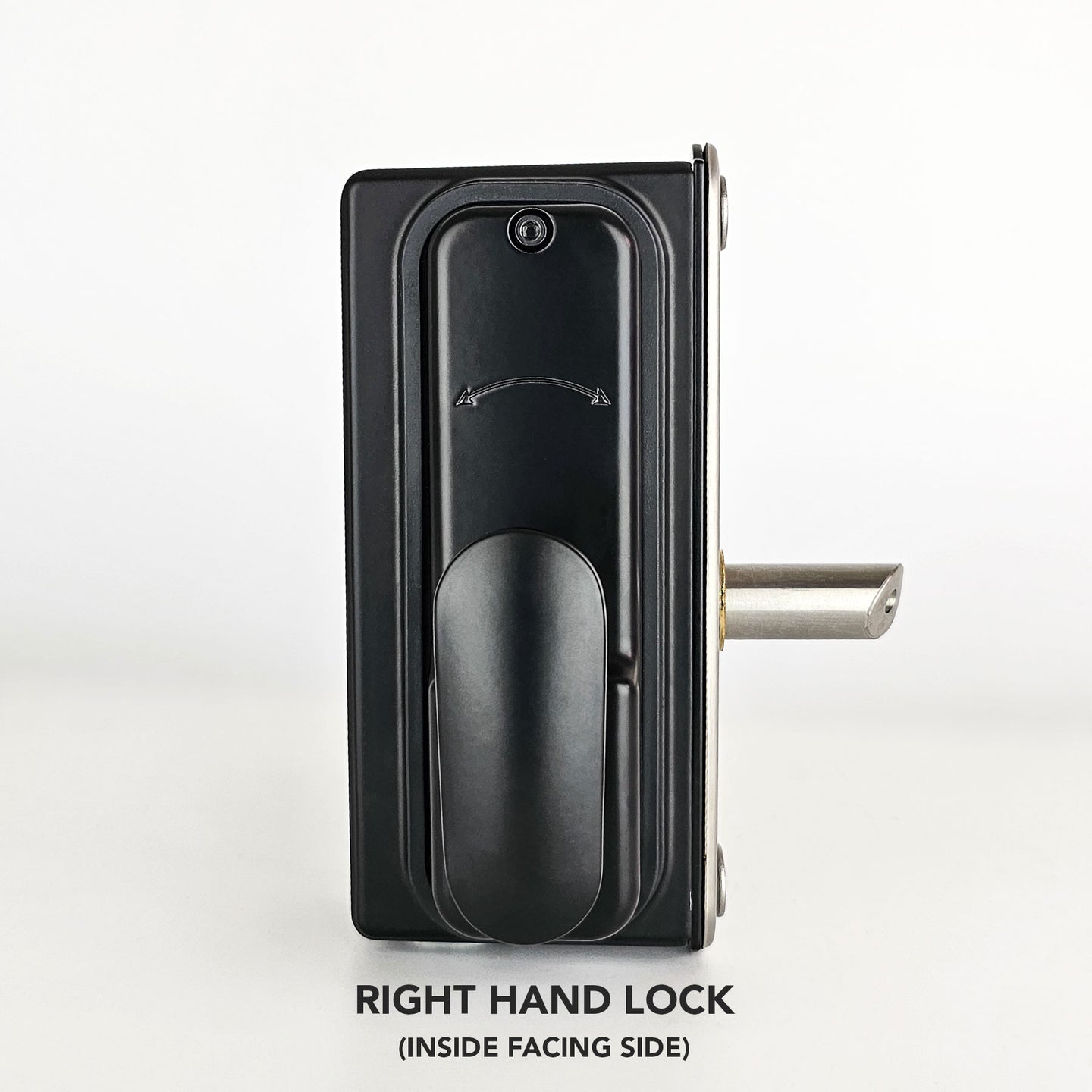

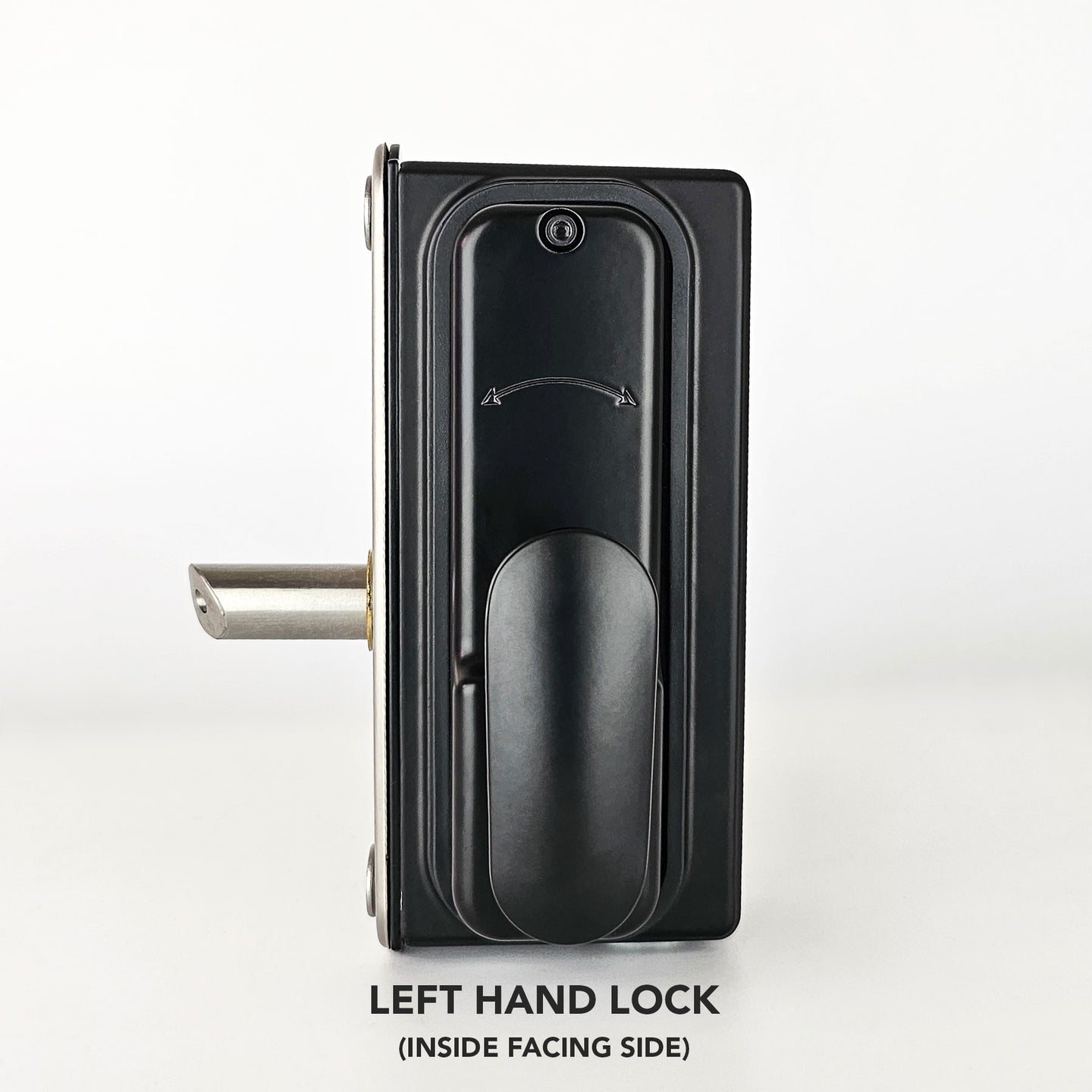

  BDGSWL – Left handed
  BDGSWR – Right handed

GATE THICKNESS

As standard the BDGSW surface-fixed lock can be installed on gates up to 75mm thick. If your gate is thicker than this, you will need to purchase our Extension Kit. Check your gate thickness in the table below to make sure you get the right fixings:

You can use the BDGSW on a minimum of 30mm thickness as standard, however you can use it on 20mm without the extenders. The maximum gate thickness is 75mm.

Get in touch if you have further questions.

Not sure which handing you need? Find out by watching this video from Gatemaster.

INSTALLATION

It is easy to install the BDGSW as it is a surface fixed digital gate lock. No chisels required!

Download the spec sheet here BDGSW Superlock Surface Fixed Digital Lock Single-Sided

If you want to see the step-by-step guide, watch this video from Gatemaster.
