DESCRIPTION

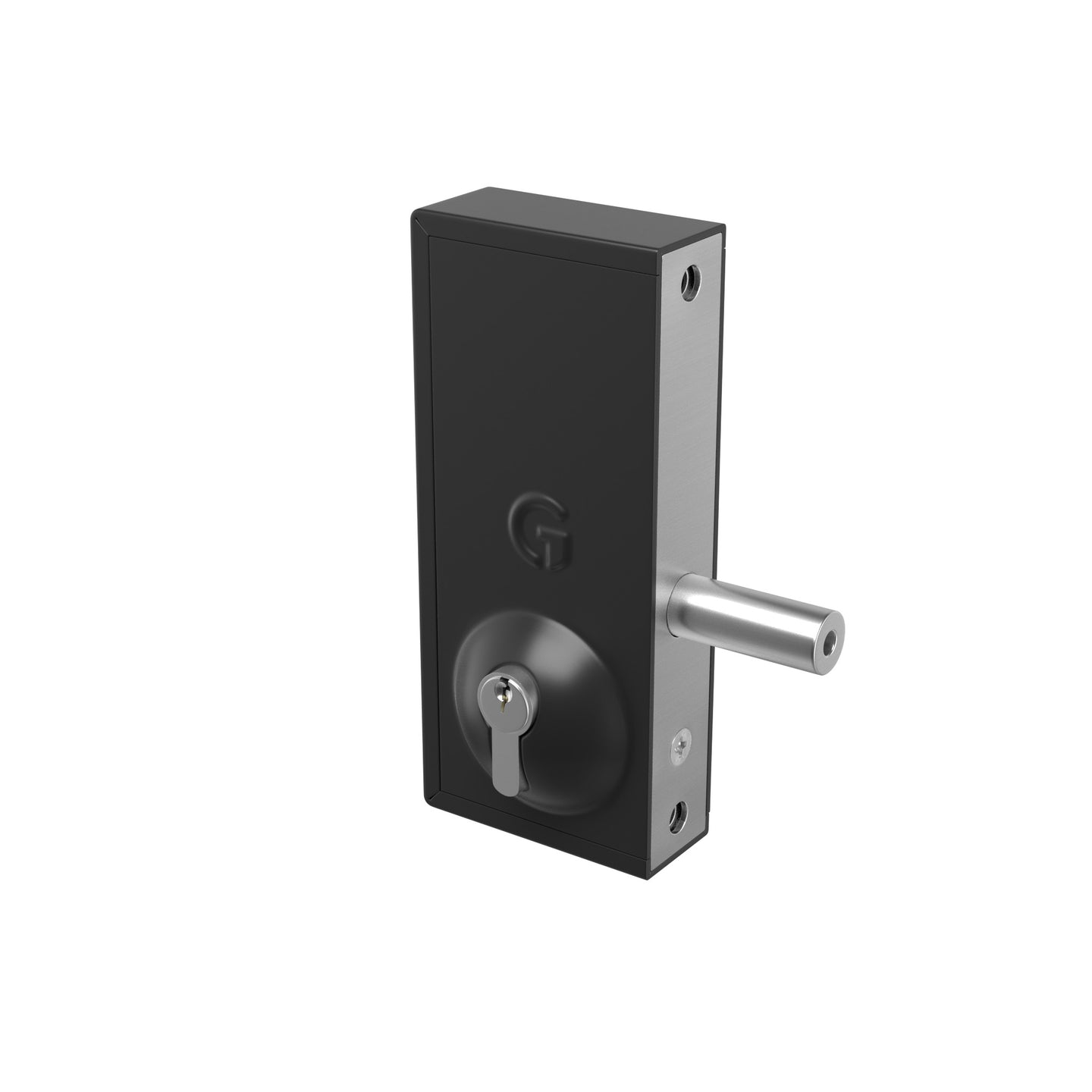

The Superlock range wouldn’t be complete without a simple deadlocking gate lock. The BD is operated with keys only and with the slim 70mm case, it will fit almost everywhere.

KEY FEATURES

• Stainless steel – The entire Superlock range is now stainless steel for added durability

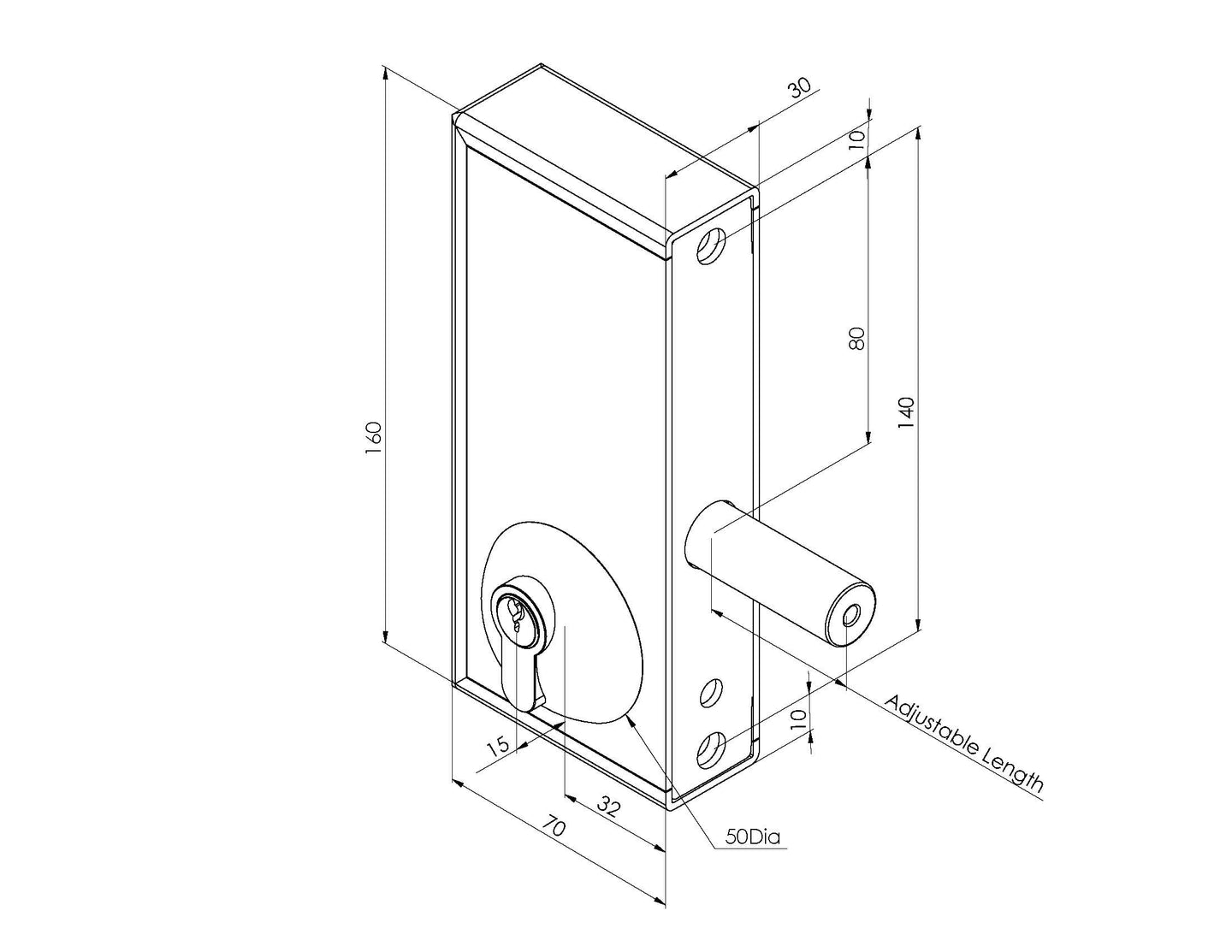

• Slim design – The 70mm wide lock case makes it easy to fit on most gates
• Simple deadlocking action – The lock is opened and closed with a key from both sides
• Adjustable – The deadbolt moves 15mm and can be adjusted in length for precise fitting
• Universal – The BD can be used on both right-hand and left-hand hung gates with the universal handing
• Supplied with bolt support plate

PRODUCT OPTIONS

• • BD1030 – For 10-30mm gate frames
  • BD4060 – For 40-60mm gate frames

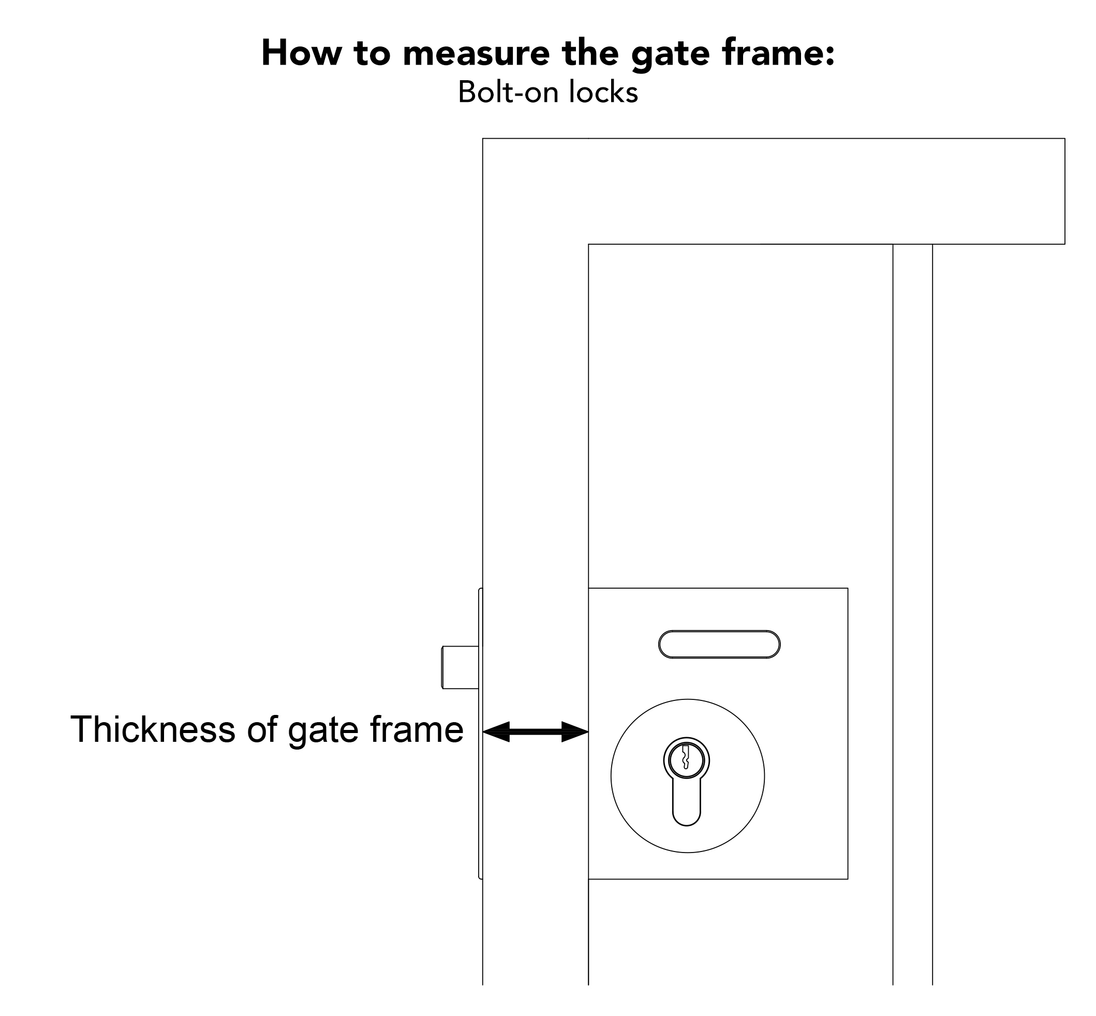

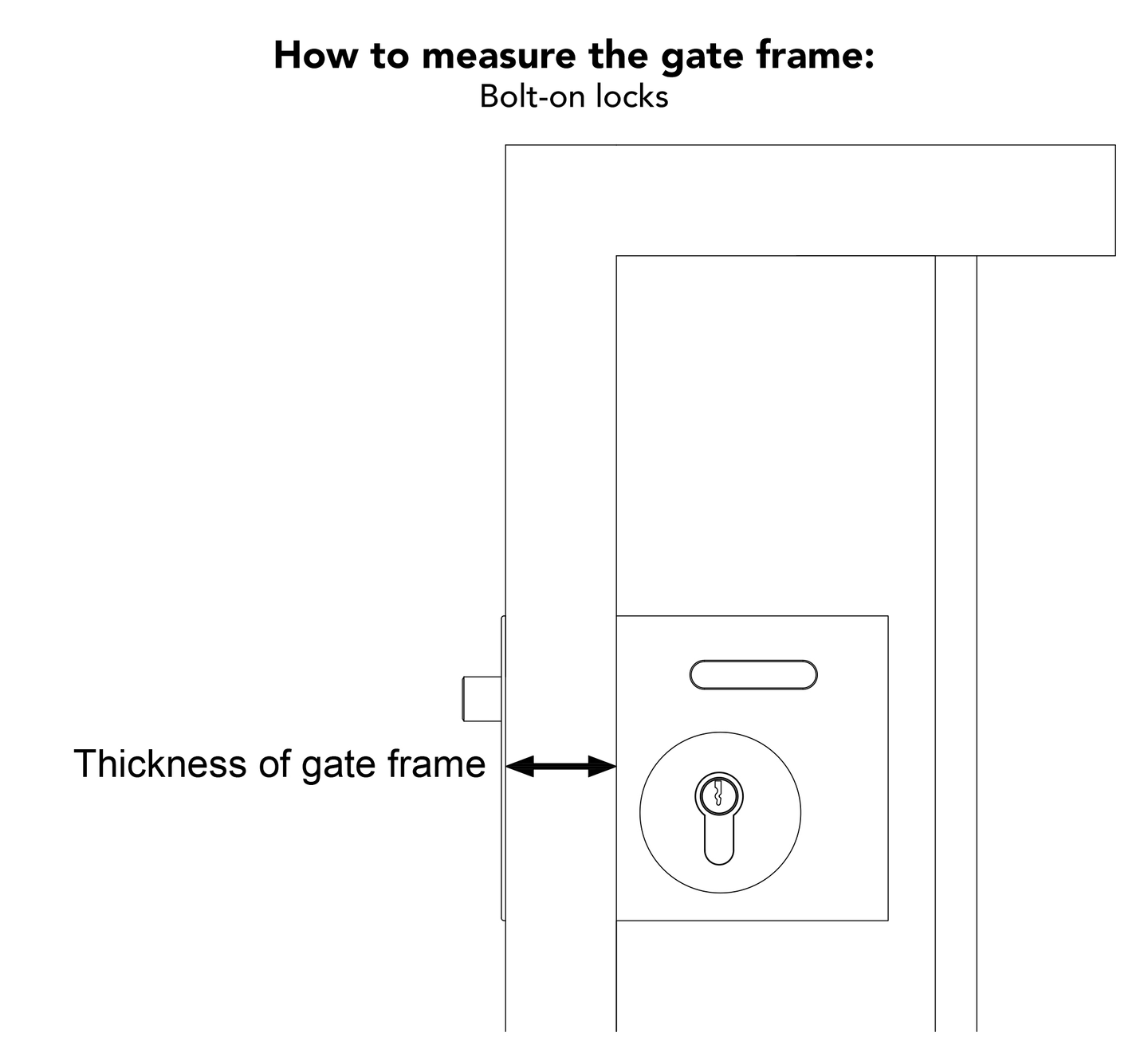

To find the correct size of your lock, you have to measure the thickness of the gate frame. View the diagram in the pictures above to see what to measure.

INSTALLATION

The BD Deadlocking gate lock is installed like our other Superlock products. View the installation guide here.

Download the spec sheet here BD Specification Sheet
